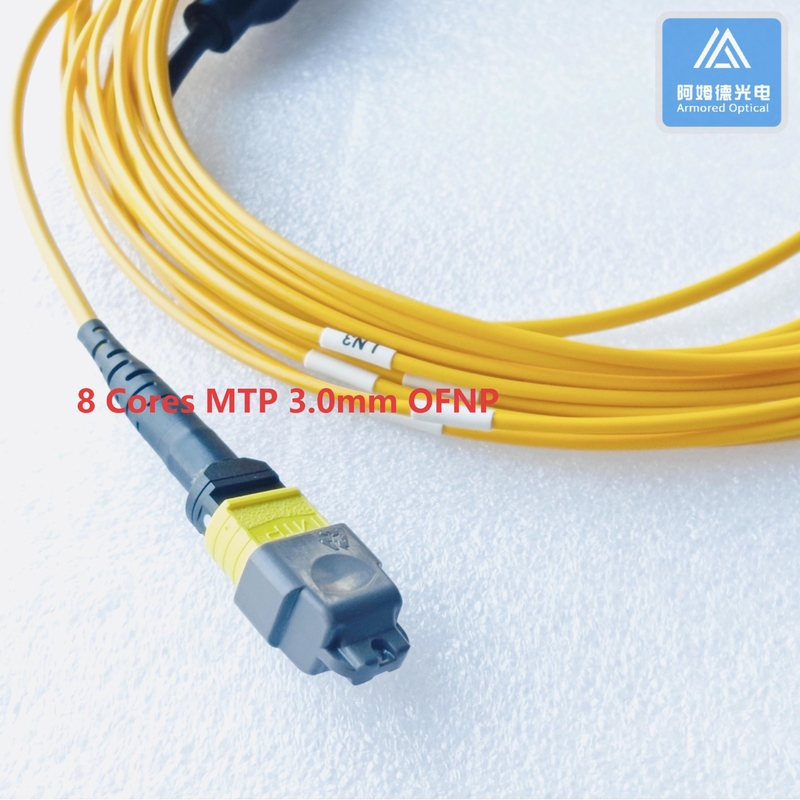

8 Cores SM Spiral Armored MTP-LC Fiber Patch 3.0mm OFNP Jacket Rodent Resistant

8 Cores SM Spiral Armored MTP-LC Fiber Patch 3.0mm OFNP Jacket Rodent Resistant

  • Nom
    8 noyaux de câble de patch MPO blindé
  • Mode fibre
    G657A
  • Diamètre
    3,0 mm
  • Matériel
    PVC-OFNP
  • Couleur
    Jaune
  • Longueur de câble
    100m
  • Tubes blindées
    Acier inoxydable
  • Application
    Centre de données
  • Fonctionnalité
    Résistant aux rongeurs
  • Nombre de flammes
    IEC60332-1-2
  • Lieu d'origine
    Chine
  • Nom de marque
    JIANGSU ARMORED
  • Certification
    ROHS
  • Numéro de modèle
    8F-G657A-3.0-H-10M
  • Quantité de commande min
    Le câble 1000M
  • Prix
    To Be Advised
  • Détails d'emballage
    Sacs en plastique, carton et palettes.
  • Délai de livraison
    2 semaines ouvrables
  • Capacité d'approvisionnement
    500 connecteurs par jour

8 Cores SM Spiral Armored MTP-LC Fiber Patch 3.0mm OFNP Jacket Rodent Resistant



8F Spiral Armored MTP Patch Cord with 3.0mm Yellow PVC Jacket Rodent Resistant

Spiral Armored MPO Patch Jumper, Spiral Armored Cable Assembly  Datacenter



With stainless steel tube, armored fiber cables are resistant to physical damage, like crush, bending, and rodent animals bites.

Especially the armored fiber cable are applied for environment where cables are exposed to outdoor, This advantage is particularly obvious



Because with metallic tube inside, armored fiber cables and patch cords have a longer lifespan than common fiber cables and patch cords. Armoured fiber cable and patch cord are not easy to wear and tear, which can reduce maintenance costs.



Parameter

Item

Armored MTP patch cord

Fiber count 8F
Cable diameter 3.0mm
Cable jacket LSZH
Connector style MTP (Mala and Female)
Length 10M



8 Cores SM Spiral Armored MTP-LC Fiber Patch 3.0mm OFNP Jacket Rodent Resistant 0



8 Cores SM Spiral Armored MTP-LC Fiber Patch 3.0mm OFNP Jacket Rodent Resistant 1





Advantage

  • The spiral armoured cable is rodent-resistant, it’s couldn’t be destroyed by rodent animals. It has long product life.
  • Compare with normal fiber cable, spiral armoured cable maintain cost will be saved.
  • The spiral armoured cable with good tension and pressure performance.
  • The spiral armoured cable can be customized, eg. construct, size, color, material, printing, length, packing and so on., to meet different customers’ different requirement.



Service

  • 100% testing before shipment.
  • Good prices can be provided.
  • Our products can be customized according to customers’ requirement.
  • Different class materials can be provided. eg, CPR, UL, OFCR, IEC60332, etc.
